Description

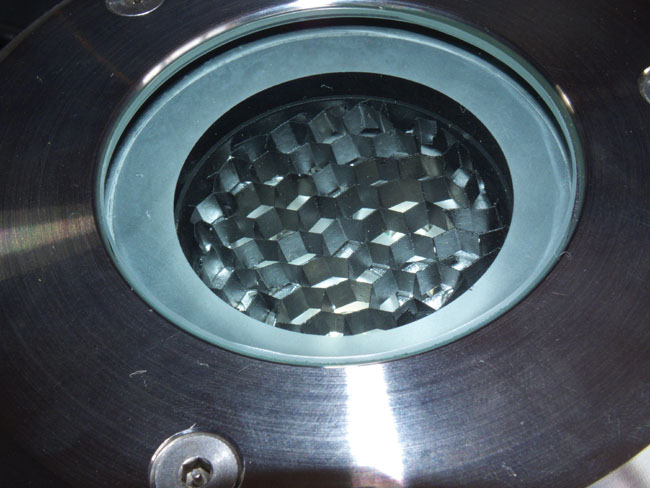

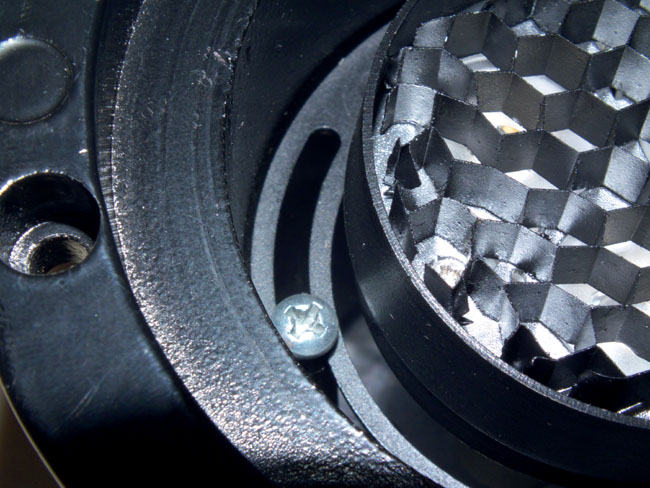

Small aesthetic architectural LED uplight with tilt lock off to 30º+ and honeycomb louvre accessory. Available in optional LED beam widths of narrow 15º, 30º, 45º & 60º. Available in Warm White 3000K or Cool White 5500K as standard - other colour temperatures on request. Calibrated heat sink for reliability and full warranty by leading Top Five LED manufacturer. High quality top plate in marine grade stainless steel 316 with thick glass to 11mm. Supplied as standard pre-cabled to 2.0metres with lock on sleeve housing & anti-vandal screws. Factory sealed with pre-resined anti-siphon chamber. Easy parallel cabling from central bulk 12Vdc Power Supply Units. [PSU’s]. Ideal for all landscapes with round, square, chamfered or flush top plate designs. LED not for dimming. Optional QR50 halogen alternative to maximum 35W GU5.3 lamp.

Options

Product Purpose & Meaning

Cardian was distinguished by the need for a LED in ground fitting with tilt & louvre, whilst being IP67 / IP68 , fully pre-cabled with a highly warrantied anti-syphon chamber. The  name “CARDIAN” is derived due to its tilting virtue ie.from the word - “Cardinal” referring to compass point angles.

Construction & Finishes

Die-cast aluminum unit - protected black for anti-corrosion. Sleeve in polymer black with cable side knock outs. Top plate in marine grade 316 stainless steel.

Key Attributes

WATTAGE
WATTAGE
CRI
VOLTAGE
VOLTAGE
IP RATING
IP RATING
